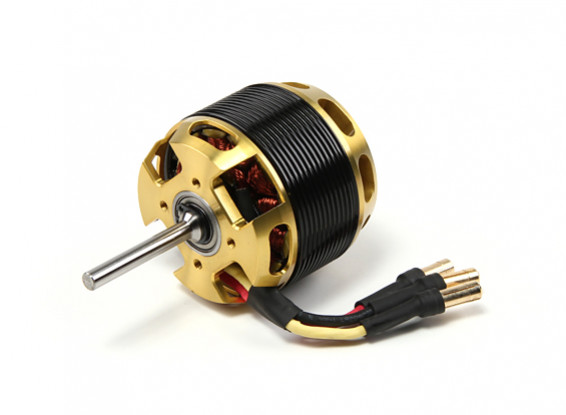

Scorpion HKIII-5020-520 Brushless Outrunner Motor

Scorpion HKIII-5020-520 Brushless Outrunner Motor

Discontinued Product

Please continue searching for a similar product.
Rating:

Stock:
OUT OF STOCK
Weight:
1080 g
SKU:
S5020520

Combine

essential items and
esc
acc
Product
Description

The Scorpion HKIII-5020-520 motor is designed for 700 class Electric Helicopters, and for people that want to convert their .90 size glow helicopter to electric power. This motor has a maximum continuous power rating of 4000 watts at 90 amps, and a peak power rating of 5320 watts at 120 amps! The larger diameter 50mm stator allows these motors to produce insane amounts of torque.

Scorpion HK Series Brushless Motors are built from the best materials available, and are designed to provide both quality and performance at an affordable price. Scorpion starts with high quality aluminum alloy parts that are produced on the latest CNC milling machines. These parts are then gold anodized to provide a beautiful, long-lasting finish. The stators are made with 0.2mm laminations to give maximum efficiency, and minimum Eddy current losses. The stators are epoxy coated to prevent shorts, and are wound with wire that is rated at 180 degrees C (356 F). The magnets used in Scorpion Motors are rated for operation at 200 degrees C (392 F), making a motor that is virtually impossible to burn up in normal use.

Spec:
Model: HKIII-5020-520kv
Kv: 520rpm/v
Motor Wind: 13 Turn Delta
No Load Current: 1.26A
Motor Resistance (Rm): 0.014 Ohms
Max Continuous current: 90A  (Max Peak 120A/5 seconds)
Max Power: 4000w (Max Peak 5320W/5 Seconds)
Shaft: 5.98mm
Weight: 498g
Cell count: 12s
Outside Diameter: 62.1mm

Product
Specifications

Additional Information

  • SKU:
    S5020520
  • Brand:
    N/A
  • Shipping Weight(g)
    1080.00
  • Length
    205.00
  • Width:
    100.00
  • Height:
    120.00
  • Kv(rpm/v)
    520.00
  • Unit Weight (g)
    468
  • Max Currents (A):
    130.00
  • Resistance (mh):
    0.00
  • Max Voltage(V)
    44.00
  • Power (W)
    4000.00
  • Shaft A(mm):
    6.00
  • Length B (mm):
    51.00
  • Diameter C(mm)
    61.00
  • Can Length D(mm)
    26.00
  • Total Length E(mm):
    85.00
