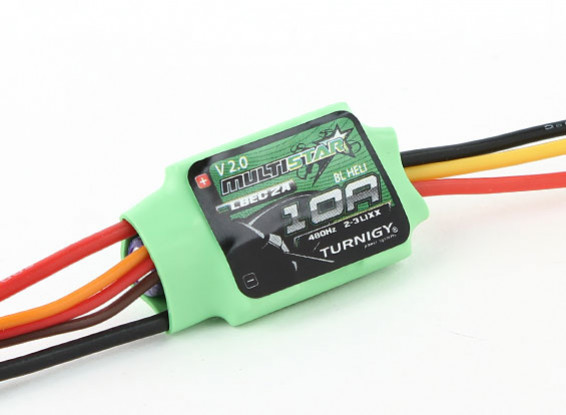

Turnigy Multistar 10A V2 ESC With BLHeli and 2A LBEC 2-3S V

Generating Links

Turnigy Multistar 10A V2 ESC With BLHeli and 2A LBEC 2-3S V

Price:

Now save save $0.00 $0.00

$9.30
Shipped From:
  • USA
Already Purchased Discontinued Product

Please continue searching for a similar product.
SKU:
9351000057-0
want FREE shipping? Click here to find out more!

MultiStar ESCs are a quality speed controller at a fantastic price! Designed for simple installation and easy setup these ESCs have proven to offer excellent performance when used in Multi-rotor applications. If you're starting out in Multi-rotors and need an easy to install solution that is tested and proven to work with Multi-rotor craft then these speed controllers have you covered.

These V2 ESC's features BLHeli software for a very smooth yet linear throttle response, without sacrificing a rapid, crisp, response to any throttle input.

All Multistar series ESC's come with bullet connectors installed that are suited to the ESC's rated power handling. This allows for plug and play convenience by simply adding the appropriate battery supply splitter (3,4 or 6 ESC) and motor lead extensions from the Multistar modular accessory line. What could be simpler?

All Multistar ESC's feature an ATmega MCU that opens the door to customizable firmware – The V2 Multistar comes with BLheli software pre-installed, and for those so inclined a ease to use USB tool is available for Configuration and updating via the BLHeli Suite GUI.

Please refer to the related items below for a solder free multi-rotor power solution to suit your next multi-rotor project.

Features:
• BLHeli Software
• USB tool updating and configuration via BLHeli GUI software
• Smooth and linear throttle control
• Fast response to throttle input
• Atmel MCU
• Stalled motor protection
• Throttle signal lose protection
• Safe power-on (throttle lockout)
• Support 480Hz+ high refresh rates (up to 499hz)
• Supports OneShot125

Specs:
Constant Current: 10A
Input Voltage: 2-3 cell Lipoly
BEC: Yes (linear) [Remove middle wire to dissable]
BEC Output: 5V/2A
PWM: 8 KHz
Max RPM: 240,000rpm for 2 Pole Brushless Motor
PCB Size: 22mm x 17mm
Discharge Plugs: Male 2mm Bullet Connector
Motor Plugs: Female 2mm Bullet Connector
Weight: 11.4g

Upload video

Only registered users can upload video. Please, log in or register

Topics
Sort by
Most Recent Topics
* Nickname:

* Your Reply:


Please, enter the text shown in the image into the field below
*Verification Code:
Cancel
Submit
Post a new Topic
* Nickname:

* Your Topic:



Please, enter the text shown in the image into the field below
*Verification Code:
Post Topic

Only registered users can write reviews. Please, sign in or sign up

Alexander | Verified Buyer

  • Overall
  • Quality
  • Value

yak 55 foamie

Sep 13, 2017

Im running this on a yak 55 32" 3d foamie i built. This one is heavy at 350g with a 850mah 3s batterie due to the foamboard used (it should be 170g with a 2s 300mah batterie if the correct foam is used)
im using the motor and prop that was recomended in the build, at 3s it flies fine even hovers. ESC seems to be coping fine

Felix | Verified Buyer

  • Overall
  • Quality
  • Value

Perfect Motor for QAV1306-3100kv

Dec 17, 2016

I use one of these on a 48cm flying wing of around 110 gram with the QAV1306-3100kv and a 2s nano-tech 1000mAh (+50g = around 160g). 5045 Prop is fine on 2s, for 3s a 4050 was almost to much.

| Verified Buyer

  • Overall
  • Quality
  • Value

Certified Buyer Rated

Apr 12, 2016

A fine ESC. Doesn't get too hot and provides me enough power.

Denis | Verified Buyer

  • Overall
  • Quality
  • Value

Customer Rated

Jan 24, 2016

Very light, very small, but its not 10A.
Gets pretty hot even under 5-7 amps in hover mode while cooled by props air flow.
I used them in my Trifecta, they power 1806 motors.

CaliforniaFPV | Verified Buyer

  • Overall
  • Quality
  • Value

Certified Buyer Rated

Jun 03, 2015

Love these esc. I kept going back to my loved afro esc but for the spidex a throw away quad this inexpensive but we'll performing esc is doing the trick.

Telmo | Verified Buyer

  • Overall
  • Quality
  • Value

Customer Rated

Feb 21, 2015

Great ESC for the price. the V2s are a MUST have for a budget multirotor.

I've paired these with the DYS BE1806s and they work quite well once programmed. However, it is important to note that when using the USB programmer you must remove the power lead from the USB programmer to this specific ESC as these ESCs have their own power UBEC.

Additionally, it should be noted that when upgrading the UBEC firmware, you must disable demagnetic compensation completely to ensure you don't burn up your high KV motors. (This features is only available for v13 of the firmware for these ESCS)

So far these have provided cool, steady power to my DYS BE1806s, and calibration was as easy as pie.

My only problem is one of these ESCs (of 6) came faulty and fried the windings on two of my motors. However HK was quick to replace them without issue.

Autotechnica | Verified Buyer

  • Overall
  • Quality
  • Value

Certified Buyer Rated

Feb 04, 2015

Pretty good ESC's. I noticed people are burning these things out a lot. You can't use a high KV motor. Max I would run is the 1900KV on a 250 quad. A 2150kv baby beast would surely burn it out. It works well if you're only planning to use it for a light weight low powered quad with a 5" prop. A 6" prop would blow this ESC. Know the limits and you'll be happy. They are oddly shaped which makes me a bit awkward to mount, aside from that, no complaints. Great price for a decent entry level ESC. Needs calibration out of the box.

pawcio0928 | Verified Buyer

  • Overall
  • Quality
  • Value

Certified Buyer Rated

Jan 14, 2015

Small, silicon cable, work great with my motors.

dtm360 | Verified Buyer

  • Overall
  • Quality
  • Value

Certified Buyer Rated

Dec 29, 2014

No problems running these ESC with DYS 1806 2300kv motors. It's just a shame that the on-board capacitor makes these ESC a little thinker than usual. If you are looking to re-solder the wires onto the ESC, you need to be quite careful, the solder pads for the motors wires are not on the edge of the board, but in the middle (HW Skywalker style!)

Aleksandr | Verified Buyer

  • Overall
  • Quality
  • Value

Customer Rated

Nov 25, 2014

The Bad:
1) One of 4 came dead. It was replaced by warranty, but god knows when it will arrive.
2) Cucumbercome hardware assembly.

The Good:
1) Works.
2) Starting with BLHeli (and BLHeliSuite) 12.2 this ESC is officially supported.

The Bottom:
One of working 3 was with different settings. So it has sense to check settings before use. Also keep in mind that you can only program it with BLHeliSuite or in programming mode with remote(not very handy). Also I was foolish to order only 4. You probably will need spare one anyway.
