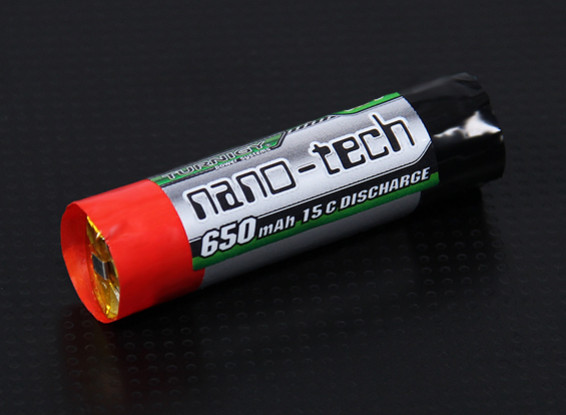

The Turnigy nano-tech round single series cells are the perfect solution for many applications where space and weight are at a premium. These round Lipoly cells can be soldered together to make custom packs to suit your needs.
More than just a fancy name. TURNIGY nano-tech Lipoly batteries were designed from the ground up with serious peformance in mind. Utilising an advanced LiCo nano-technology substrate that allows electrons to pass more freely from anode to cathode with less internal impedance. In short; less voltage sag and a higher discharge rates than a similar density lithium polymer (non nano-tech) batteries.
For those that love graphs, it means higher voltage under load, straighter discharge curves and excellent performance. For pilots it spells stronger throttle punches and unreal straight-up performance. Excellent news for 3D pilots!
Unfortunately with other big brands; numbers, ratings and graphs can be fudged. Rest assured, TURNIGY nano-techs are the real deal, delivering unparalleled performance!
Voltage: 1s / 3.7V
Discharge: 15C Constant
Dimensions: 41mm x 13mm
Balance Plug: N/A
Discharge Plug: N/A
Advantages over traditional Lipoly batteries;
• Power density reaches 7.5 kw/kg.
• Less Voltage sag during high rate discharge, giving more power under load.
• Internal impedance can reach as low as 1.2mO compared to that of 3mO of a standard Lipoly.
• Greater thermal control, pack usually doesn’t exceed 60degC
• Swelling during heavy load doesn’t exceed 5%, compared to 15% of a normal Lipoly.
• Higher capacity during heavy discharge. More than 90% at 100% C rate.
• Fast charge capable, up to 15C on some batteries.
• Longer Cycle Life, almost double that of standard lipoly technology.
The nano-core technology in lithium ion batteries is the application of nanometer conductive additives. The nanometer conductive additives form ultra-strong electron-conducting networks in the electrodes which can increase electronic conductivity. These additives create the ability for imbibition in the carrier liquid to supply more ion channels.
This improves the ability of ion transmission and ion diffusion. Through improving electronic conductivity and ion transmission, the impedance is reduced and the polarization of high rate discharge decreases greatly.
Unit Weight (g)
Max Charge Rate(C):
Gute Akkus die sehr gu in schmale DLG-Rmpfe passen.Leichtgewicht von Zelle fr viele Anwendungen: Empfngerpack, Antrieb... Meine werden bis 5,5 A genutzt. Zum Lten habe ich einen 35 w genommen, kleine Ltfahnen, an denen man nich lange rumbraten sollte.I advise those who engaged in gliders is very convenient compact product
I order product that is not the first time because I like performance reliabilityFor shure a great price and very low weight. Capacity will not be more than 590 mAh even after some charging/discarging circles. But its ok.
Soldering is a little bit tricky because the pins are very thin an small.
Finally the price and the low weight recommands this cells
Very light battery because
they use thinnest plastic hose instead of shrink tube.
very small and thin connectors for soldering.
Good is the weight (see above) and the costs.
I wonder how the thin connectors will bear 15C = 15 Amps?
Super Akkus ! Werden in meinen DLGs benutzt.Als 2S Zusammengeltet und im DLG verbaut 5Gramm schwerer als 2S 350 mAhThese battery are very nice and i know people will like them. there is a lot of different types of applications for this battery i like it.
