Turnigy™ TGY-SM-4482M All-purpose DS/MG Servo 13.5kg / 0.15 Sec / 63g

Generating Links

Turnigy™ TGY-SM-4482M All-purpose DS/MG Servo 13.5kg / 0.15 Sec / 63g

Already Purchased Discontinued Product

Please continue searching for a similar product.
want FREE shipping? Click here to find out more!

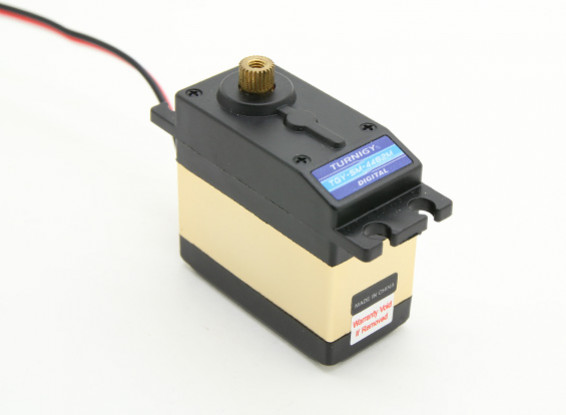

The Turnigy TGY-SM-4482M is an all purpose metal gear servo that features standard mounting points for ease of fitment, precision operation and fast movement to 60°.

Best suited to mid sized gas, nitro or electric models including helicopters.

• Standard mounting points for easy installation
• All necessary hardware included
• All-Purpose use
• 60° Rotation
• Metal Gears

Model: TGY-SM-4482M
Output: Single
Operating Voltage: 4.8 / 6.0V
Operating Speed: 0.17 Sec / 0.15 Sec
Stall Torque: / 13.5kg. cm
Size: 43X40x20mm
Weight: 63g
Motor: Coreless
Ball Bearing: 2BB
Gear: Metal
Spline Count: 25
Plug: JR Type
Wire Length: 20cm

  • Servo Torque(kg)(min. 0.01kg) 13.50
  • Servo Speed (Sec/60deg) 0.15
  • Servo A(mm) 43.00
  • Servo B(mm) 41.00
  • Servo C(mm) 39.00
  • Servo D(mm) 20.00
  • Servo E(mm) 55.00
  • Servo F(mm) 28.00

Dimension Diagram Guide
