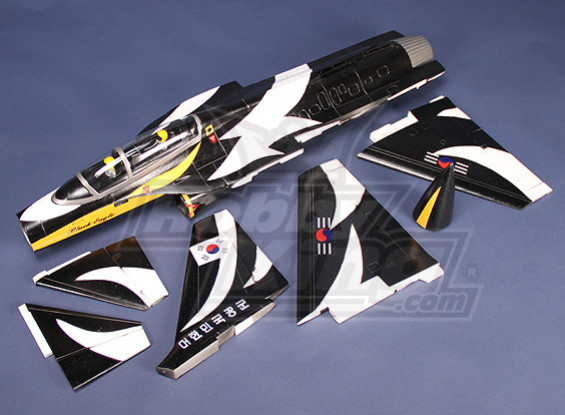

T-50 70mm EDF Jet (Black Kit)
T-50 70mm EDF Jet (Black Kit)
Awesome!
Copy and Share the Below URL
Accessories
Looking for something different in a foamie EDF? Then the T-50 70mm Jet is for you! This T-50 has a few tricks up its sleeve. The Scale detail cabin is motorized and can be opened or closed using a spare channel on your transmitter! The included retract system also has functional doors that close completely once the retracts are stowed. All control circuits and hardware are included for the canopy and retracts.
The included 70mm EDF unit requires a 28 Size EDF Motor around 2650kv and a 4s 2200mah Lipo is recommended. A Selection of armaments are also included in the kit to let you customize the look of your jet. You will also require five 9gram servos a 45Amp or greater ESC and your own 6 channel transmitter and receiver (Tx/Rx)
Specification:
Wing Span: 820mm
Length: 1050mm
Weight: 1200g
Motor: 28 Size EDF Brushless Motor 2650kv (Required)
EDF Unit: 70mm
ESC: 45A (Required)
Battery: 14.8v 4s 2200mah Lipo (Required)
Battery Compartment: 120 x 33 x32mm (MAX)
Servo: 5 x 9g (Required)
Required:
ESC: 45A
Motor: 28 Size EDF Brushless Motor 2650kv (Required)
Servo: 5 x 9g
Your TX & RX (6 Channel Minimum)
14.8v 4s 2200mah Lipoh lipo battery
